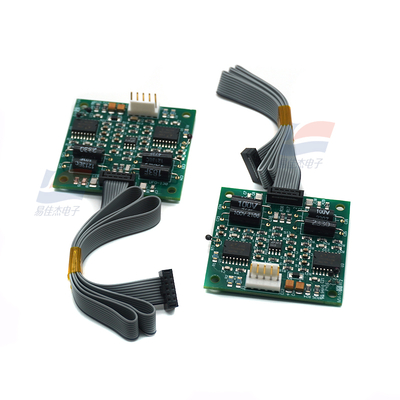

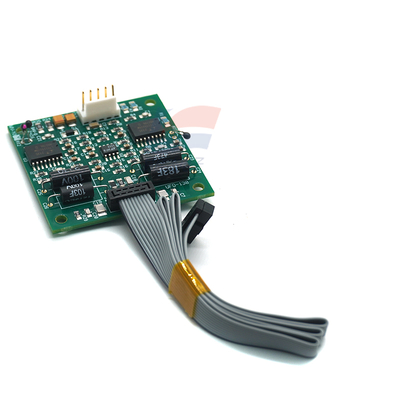

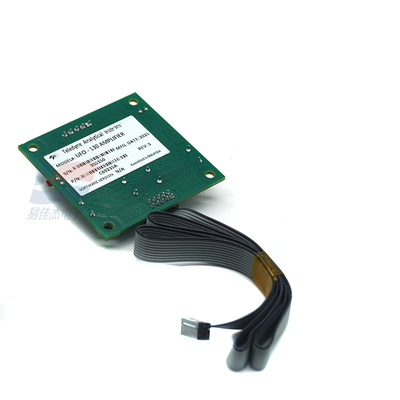

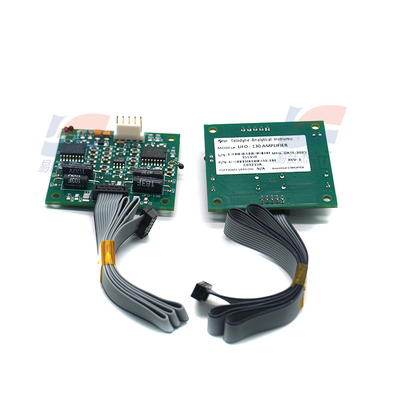

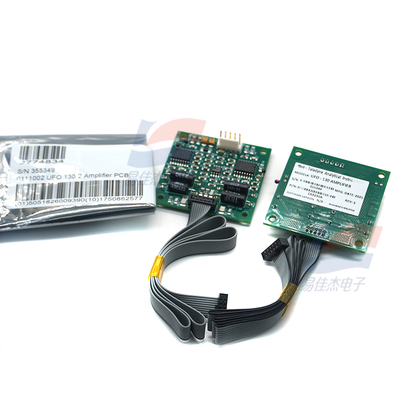

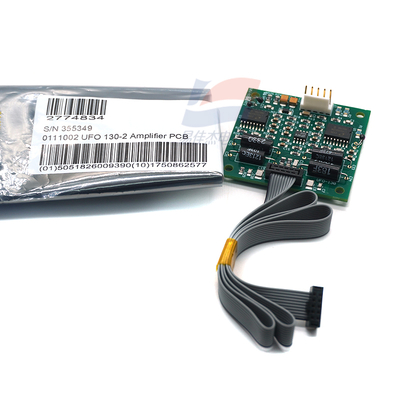

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

Certificación
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaciones
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaciones
Estoy en línea para chatear ahora

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors
UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

Ampliación de imagen :  UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

Datos del producto:
Lugar de origen: EE.UU
Número de modelo: OVNI 130-2 PC de 2x2 pulgadas
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: caja de papel
Tiempo de entrega: 3-5 días de trabajo
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 5000pcs

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

descripción
Rango de medición: 1% - 100% oxígeno Señal de salida: 3.4 ± 0.4V
Resolución: 0.1% Humedad operativa: 0 - 99%
Presión ambiental de trabajo: 550 - 800 mm Hg Tamaño de PCB: 2 × 2 pulgadas
Resaltar:

UFO 130-2 oxygen sensor module

,

medical oxygen sensor PCB

,

metabolic testing equipment sensor



UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors



Product Features:

  1. High - precision Measurement: It features a measuring range of 1% - 100% oxygen. When calibrated in air and 100% oxygen under constant temperature and pressure, its accuracy is within ±1.0% oxygen, and the resolution can reach 0.1%, which is able to precisely capture slight fluctuations in oxygen concentration.
  2. Quick Response: At a gas flow rate of 200±100 cc/min, it can finish a 10 - 90% oxygen percentage step - change within 130 milliseconds. Slower gas flow rates will make the response a bit slower.
  3. Stable Performance: The sensor is immune to shock, vibration and physical impacts. Its operating humidity range is 0 - 99% relative humidity (non - condensing), and the working ambient pressure is 550 - 800 mm Hg. Its continuous operating temperature is 15 - 40°C, and it can tolerate up to 50°C for less than 2 hours a day, with stable operation under a wide array of environmental conditions.
  4. Low - power Consumption Design: It requires a supply voltage of +11.8 VDC to +16.0 VDC and -11.8 VDC to -16.0 VDC, and its power consumption is less than 200 mW, which is an energy - saving and environment - friendly design.
  5. Compact and Portable: The sensor itself is 2 5/8 inches long and 1 3/16 inches wide, weighing less than 2.5 ounces (about 40.9g). The size of the PCB board is 2×2 inches, with a board weight of under 1.5 ounces (about 42.5g). The whole set is small and lightweight, which is easy to install and carry.
  6. Good Compatibility: It has an inlet port that connects to a tube with an outer diameter of 1/16 inches, and an outlet port equipped with a Luer connector, which is convenient for connection with different gas pipeline systems.
  7. Long Service Life: Under the conditions of 25°C and 50% relative humidity in the air, the expected service life of the sensor is 24 months, which can reduce the frequency of equipment maintenance and replacement.
  8. Compliance with Standards: The product meets ISO7767 (1997), ASTM F1462 - 93 standards, and also conforms to the CE medical device directive, which can meet the application requirements in a variety of regulated scenarios.

Application Scope:

It is extremely suitable for medical fields like metabolic function testing equipment and intensive - care monitors. Besides, it is also extensively used in environmental monitoring instruments, gas detectors, water quality detectors, and scientific research laboratory equipment, which are used to measure the oxygen content in gas samples.



Parameter Name

Parameter Details

Measuring Range 1% - 100% oxygen
Output Signal 3.4±0.4V (at 100% oxygen, 1ATM), some sources indicate 0 - 4V
Accuracy Less than ±1.0% oxygen when calibrated in air and 100% oxygen under constant temperature and pressure
Resolution 0.1%
Response Time <130 milliseconds, for 10 - 90% oxygen percentage step - change at a gas flow rate of 200±100 cc/min. Slower flow rates will make response time longer
Cross - interference Refer to ISO7767, ASTM - F1462/93
Operating Humidity 0 - 99% relative humidity (non - condensing)
Working Ambient Pressure 550 - 800mm Hg
Working Relative Pressure Continuous: -100 to +100mm Hg relative to ambient pressure; Intermittent: up to - 200mm Hg for less than 5 seconds
Operating Temperature Continuous: 15 - 40°C; Intermittent: up to 50°C, less than 2 hours per day
Power Supply +11.8VDC to +16.0VDC and -11.8VDC to -16.0VDC
Power Consumption Less than 200mW
Sensor Size 2 5/8 inches long, 1 3/16 inches wide
PCB Size 2×2 inches
Sensor Weight <2.5 ounces (about 40.9g)
PCB Weight <1.5 ounces (about 42.5g)
Sensor Expected Life 24 months in air (at 25°C, 50% relative humidity)
Sensor Storage Temperature 0 - 40°C
Inlet Connection Tube with an outer diameter of 1/16 inches
Outlet Connection Luer connector
