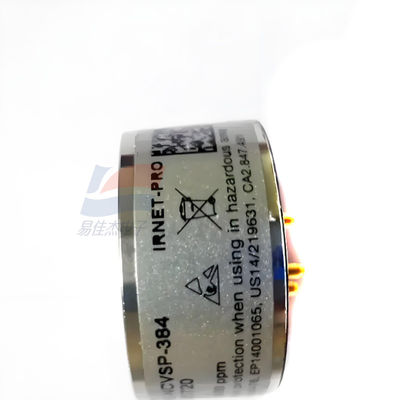

YJJ IFP32-SF6B-NCVSP NET Infrared Gas SF6 Sensor NDIR Sensor

Product Description:

YJJ IFP32-SF6B-NCVSP NET Infrared Gas SF6 Sensor NDIR Sensor

Features:

Feature:
Infrared light source based on microelectronic technology
Standard sensor size: 7 series 32mm
Includes all necessary optical components, circuits and hardware, providing temperature compensation function and excellent linear output.
SIL2 certification (TV certification)
Standard analog voltage output, digital output
Fast response time: approximately 30 seconds
Wide temperature range and humidity range (-20°C to 50°C)
Detection range: 0-1000PPM, 0-2000PPM

IFP32-SF6B-NCVSP Italian NET Infrared Sulfur Hexafluoride Sensor

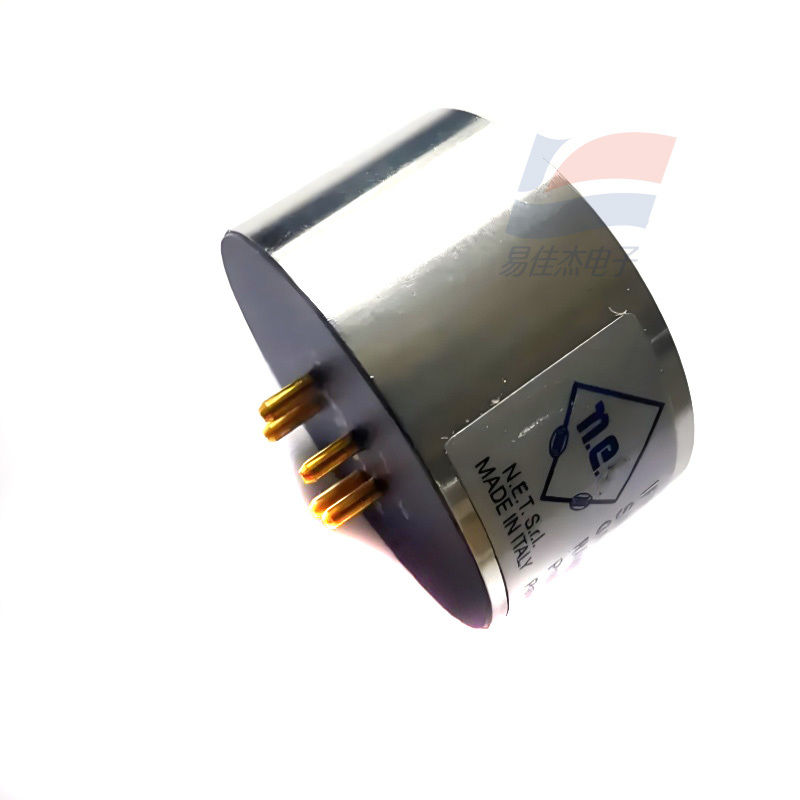

Description of Italian N.E.T SF6 Sensor NDIR Sensor IFP32-SF6M-NCVSP:
The IR series infrared gas sensor uses NDIR technology to detect the presence of SF6. This technology is based on the principle that gases have unique and clearly defined light absorption curves in the infrared spectrum, which can be used to identify specific gases. The gas concentration can be determined by using an appropriate infrared light source and analyzing the energy absorbed by the gas in the light path. Its signal linearization and temperature compensation are well-suited for instrument manufacturers who do not have specialized knowledge of IR technology.
The IREF sensor is equipped with an electronic and firmware that ensures linear output and temperature compensation. Its output is an analog voltage [0.4V - 2V] dc (other voltages can be customized as required).

Italian N.E.T SF6 Sensor NDIR Sensor IFP32-SF6M-NCVSP Characteristics:
Standard analog voltage output
Standard sensor size 32mm
Infrared light source based on micro-electromechanical systems (MEMS)
Fast response
Sturdy construction

Specifications:
