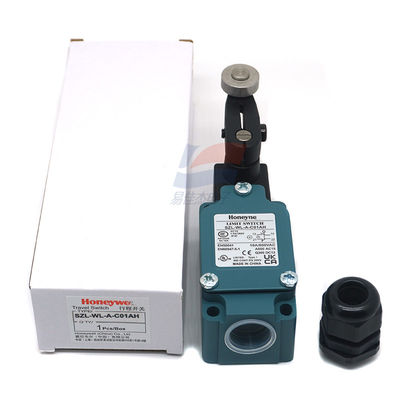

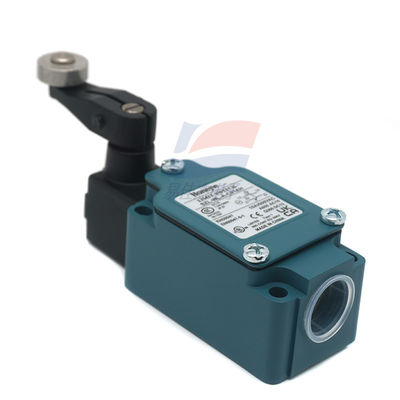

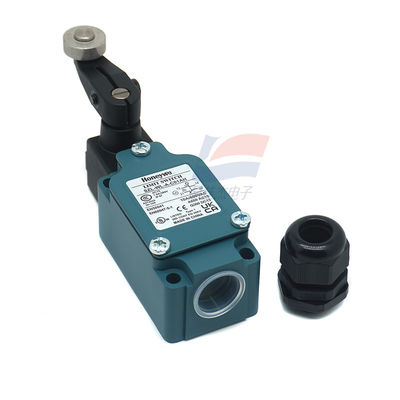

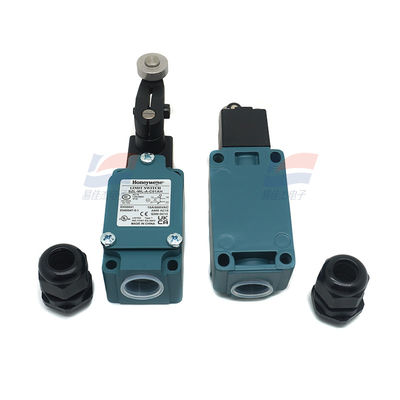

YJJ SZL-WL-B-C01AH Universal Limit Switch Three-Channel Switch For Industrial Automation Field

Product Description:

YJJ SZL-WL-B-C01AH Universal Limit Switch Three-Channel Switch for Industrial Automation Field

Features:

Main structure overview:

The stroke switch is mainly composed of contact group, camshaft and shell displacement, etc. The contact splitting is realized by the rotation of camshaft driven by the operating mechanism. The structure of the contact group is rotary double breakpoint. Rod type, fork type, heavy hammer type travel switch can be installed one or two groups of contact group, composed of a single loop (a normally closed) or double loop (a normally open, a normally closed) open and close form, the user can according to the actual application process, as long as the CAM Angle adjustment, can change the contact open and close form. Selector travel switch can be installed at the same time four groups of contact groups, so that its rise or fall can have two levels of protection. In the actual application of rotary travel switch, if you need to control the lift of the lifting mechanism, just pull out the positioning pin, turn the nut, adjust the screw nut mechanism, you can change the lift of the lifting mechanism.

Inlet travel switch

Import trip switch WL series, HL series, D4V series, SZL-WL series representative force, such products fine work in the environment performance is more prominent, won a large number of fans, but also make many users surprised

Parameter Specifications
‌Rated Voltage: 220V AC
‌Rated Current: 36A
‌Working Stroke: B50 (stroke length 50mm)
‌Overstroke: A25 (overstroke 25mm)
‌Contact Type: Normally Open (AC type)
‌Protection Grade: Class A (has relatively weak dust and water resistance)
‌Shell Material: Steel
‌Operating Temperature Range: 18 - 28℃
‌Life Span: 150,000 cycles (mechanical life)

Specifications:
