Datos del producto:
|
Nominal Power: | 300 watts | Power Range: | 180 - 320 watts |
---|---|---|---|
Nominal Current: | 21 amps (DC) | Current Range: | 10 - 22 amps (DC) |
Ignition Voltage: | 23 - 35 kilovolts | Nominal Operating Voltage: | 14 volts (DC) |
Resaltar: | 300W xenon medical bulb,endoscopy cold light bulb,PE300BFA xenon lamp |

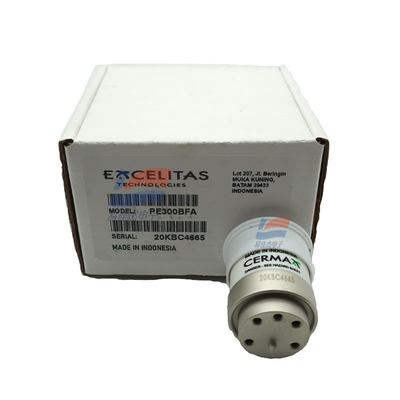

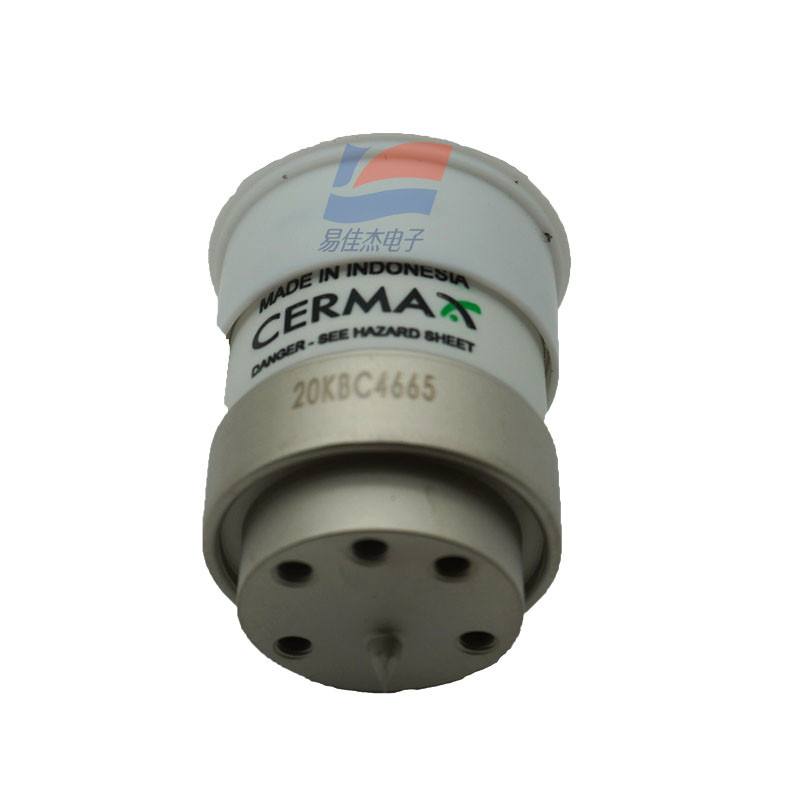

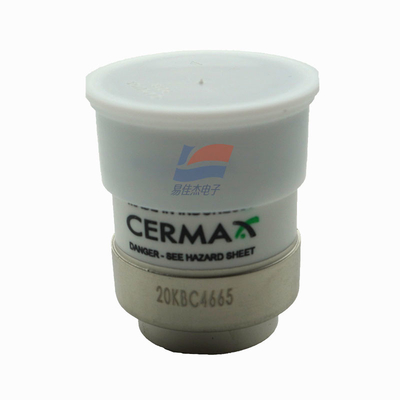

PE300BFA 300W Xenon Lamp Cold Light Bulb for Medical Endoscopy
Application Scenarios:
Product Features:
Manufacturer Product Number | PE300BFA |
Series | Cermax® |
Type | Short - arc Parabolic Lamp |
Style | Ceramic Body |
Nominal Power | 300 watts |
Power Range | 180 - 320 watts |
Nominal Current | 21 amps (DC) |
Current Range | 10 - 22 amps (DC) |
Ignition Voltage | 23 - 35 kilovolts (system dependent) |
Nominal Operating Voltage | 14 volts (DC) |
Operating Voltage Range | 13 - 16 volts (DC) |
Lifetime | 1000 hours typical |
Maximum Temperature | 150 °C |
Total Visible Output | 5000 lumens |
Radiant Output | 50 watts |
UV Output (<390 nm) | 2.6 watts |
IR Output (>770 nm) | 29 watts |
Reflector Type | Parabolic |
Window Diameter | 1 inch (25.4 mm) |
Focused Output (8mm Aperture) | 3130 lumens, 29 watts |
Focused Output (6mm Aperture) | 1410 lumens, 14 watts |
Peak Intensity | 3.0 x 10^5 candelas |
Color Temperature | 5600 - 5900 kelvin |
Arc Gap | 0.049 inches (1.24 mm) |
Cathode Defocus 'd' | 0.003 inches (0.08 mm) |
Weight | 132 grams |
