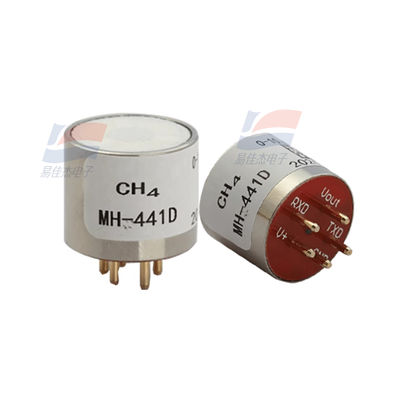

MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring

Certificación
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaciones
CHINA ShenzhenYijiajie Electronic Co., Ltd. certificaciones
Estoy en línea para chatear ahora

MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring

MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring
MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring

Ampliación de imagen :  MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring

Datos del producto:
Lugar de origen: CN
Número de modelo: No puedo.
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Precio: Negociable
Detalles de empaquetado: Embalaje estándar
Tiempo de entrega: 5 a 8 días hábiles
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 5000 piezas

MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring

descripción
Voltado de funcionamiento: 3.6 5 V de corriente continua Corriente media: El valor de las emisiones de CO2
Rango de medición: 0~10%Vol Nivel de interfaz: 3.0V
Resaltar:

NDIR gas sensor industrial monitoring

,

universal infrared gas sensor

,

intelligent gas sensor safety protection



      MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring





Main Applications:

  • HVAC (Heating, Ventilation, and Air Conditioning) and indoor air quality monitoring.
  • Industrial process and safety protection monitoring.
  • Agricultural and animal husbandry production process monitoring.

Product Characteristics:

  • High sensitivity, high resolution, low power consumption, and fast response time.
  • Multiple output modes: UART, analog voltage, etc.
  • Resistance to water vapor interference, non-toxic, and can directly replace catalytic combustion principle sensors.
  • Suitable for use in high-density dust environments.
  • Temperature compensation function for excellent linear output.
  • Long service life (≥5 years) and IP54 protection level.



Detected Gas Methane (CH₄)
Operating Voltage 3.6~5V DC (powered by safety barrier)
Average Current <85mA (peak current <100mA) @5VDC
Measurement Range Selectable within 0~10%Vol
Interface Level 3.0V
Output Signals UART - TTL (3.3V compatible with 5V), 0.4~2V
Warm-up Time 3min
Response Time T₉₀ <30s
Operating Temperature -20~60℃
Operating Humidity 0~95%RH (non-condensing)
Dimensions Φ20×22.4mm
Weight 35g
Service Life >5 years



MH-441D Universal Intelligent Infrared Gas Sensor NDIR For Industrial Process And Safety Protection Monitoring 0
