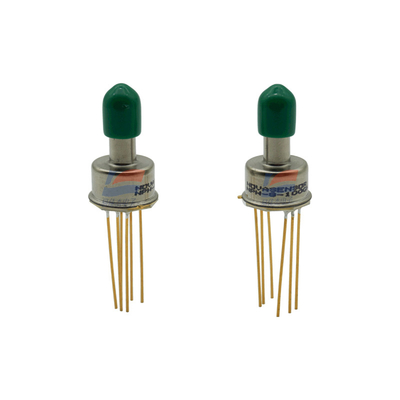

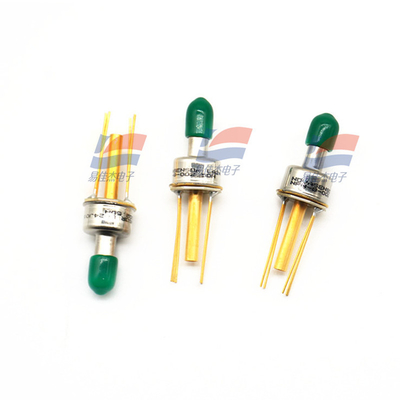

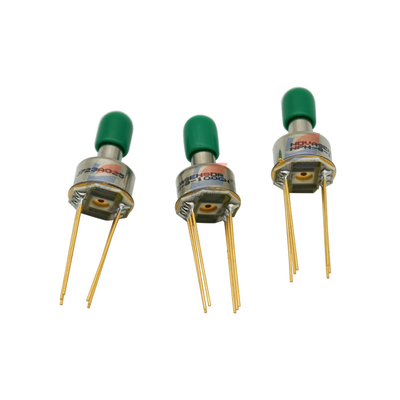

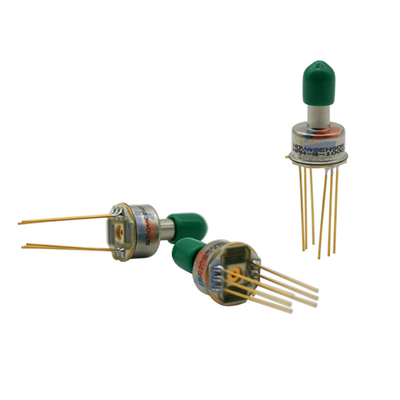

YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments

Product Description:

NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments

Features:

Parameter Name Attribute Value Product Attribute Attribute Value

Manufacturer

Manufacturer: Amphenol (Anfenuo) Product types

Product Category Board Mount Pressure Sensors

RoHS In Transition

Operating Pressure 200 kPa

Type of stress Pressure Type Absolute

Accuracy: 0.2%

Packaging / Enclosure Package / Case TO-8-6

Minimum operating temperature Minimum Operating Temperature - 40 C

Maximum operating temperature Maximum Operating Temperature + 125 C

Series

Packaging Tray

Output Voltage 100 mV

Working power supply current

Operating Supply Current 1.5 mA

Factory packaging quantity Factory Pack Quantity 1

Mfr Amphenol NovaSensor
Output 0 mV ~ 100 mV
Series NPH
Package Bulk
Accuracy ±0.1%
Features Temperature Compensated
Port Size Male - 0.19" (4.83mm) Tube
Port Style Barbless
Output Type Wheatstone Bridge
Applications Board Mount
Mounting Type Through Hole
Pressure Type Absolute
Package / Case TO-233AA, TO-8-3 Metal Can
Product Status Active
Maximum Pressure 116.03PSI (800kPa)
Voltage - Supply -
Termination Style PC Pin
Operating Pressure 29.01PSI (200kPa)
Base Product Number NPH-8
Operating Temperature -40°C ~ 125°C
Supplier Device Package TO-8

Specifications:
